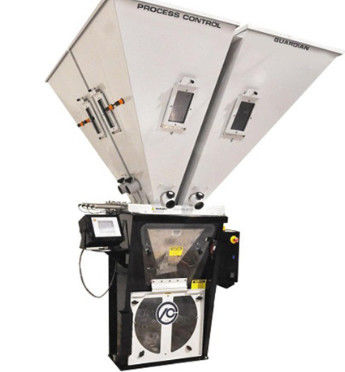

Horizontal Rotary Gravimetric Dosing System , Gravimetric Blender Self Adapting

Horizontal Rotary Gravimetric Dosing System , Gravimetric Blender Self Adapting

Product Description

The weighing machine can be installed on the scaffold above the machine, and can be installed on the scaffold next to the machine, with a vacuum suction machine for conveying raw materials to the molding machine, or on the floor above the molding machine. Weighing and metering of raw materials can be accomplished by pneumatic valve or micro screw feeding device (optional). Each material is directly sent to a weighing plate made up of a high precision weighing unit (load cell). When all raw materials are weighed correctly, the whole batch of raw materials will be sent to the mixing bin. The high efficiency raw material agitator will mix raw materials evenly, then fall into the bin or directly enter the feed inlet of the molding machine. The material level sensor in the mixing bin controls the whole metering feeding process.

Application Field

Gravimetric Batch Blender is ideal for use in injection, blow molding, and extrusion operations.

System function features

1) Gravimetric Batch Blender is designed and developed for dosing granulate, free flowing regrind, masterbatch

and/or additives.

2) Gravimetric dosing and mixing unit that blends up to 8 materials with a great level of accuracy and repeatability.

3) Self-adapting proportioning control:automatically correct the material charging error and the precision error is less than 0.1%.

System Principle
According to the weighing and measuring principle,the precise rate of each component can be inspected and controlled.
Self-adapting Algorithm is adopted to make sure the feeding precision.

Our Value-added Service Package

1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation.

2. Technical Services: Our company has been devoting ourselves into offering custom transforming projects for our worldwide clients in the field of medical, chemical engineering, plastics, rubber industries etc.

We can assist our clients to solve all kind of technical problems with our capable technician team, and we own adequate experience for production line transformation as well as formula feeding arrangement.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.

Service

1) OEM services provided

2) Excellent quality assurance

3) Fast delivery

4) Worldwide dealer or agent needed

FAQ

Q1: How can I find a loss in weight feeder machine model suitable for my product?

According to the material you are going to use.

Q2: May I know the delivery time?

Delivery will be within 20 days .

Q3: What type of payment do you have available?

We accept TT payment for offline orders.

Q4: How does your factory control the quality?

We are controlling the quality from beginning to the end.
