Gas Drive Pellet Bagging Machine , Quantitative Packing Weigher 10kg-70kg
 |
Product Details:
| Place of Origin: | WuXi , China |
| Brand Name: | Wuxi Tonglike |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P, MoneyGram |
| Supply Ability: | 30 Sets Per Month |
Detailed Product Description
| Product Name: | Quantitative Packing Scale | Control Box: | Full Touch Screen Panel |
|---|---|---|---|
| Driven Type: | Gas Drive | Permissible Error: | 0.25% |
| Three Load Cell: | High Weighing Accuracy | Display Type: | Touch Screen |
| High Light: | pellet bagging equipment,wood pellet bagging machine |
||

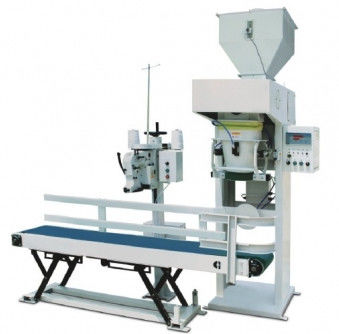

Gas Drive Pellet Bagging Machine , Quantitative Packing Weigher 10kg-70kg
Application
High quality 25-50kg open mouth bag fertilizer quantitative packing scale suit for weiging filling bagging fertilizer rice wheat granule into open mouth bags then closed by sewing or heat sealing.
The weight from 10kg-70kg are available. packing range 120-180bags/hour, 240-360bags/hour and 400-500bags/hour
The bag can be closed by heat sealing for lining/plastic bags and sewing(thread stitching) for woven bags, paper bags, kraft bags, sacks etc.
Features
1, Installation 3pcs load cell, each load cell max weight 200kg, IP67 grade, high weighing accuracy, working more stable
2, Dual control system, the CHIMEI weighing instrument and PLC control system
3, Color touch screen HMI, easy operation
4, PLC system operation by 10" touch screen
5, Installation 2pcs of proximity switch and 2pcs cylinder, bag clamp more tighter, more safe
6, Automatic bag sewing and sewing conveyor speed adjustable
7, Parts of famous brand, such as Delta, Schneider, CHNT, AirTAC
|
Application materials
|
iron powder ,cement , limestone , feed additive or other powder material.
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
10-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
360-480 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2100mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
(1.5+2.2)KW
|
||
|
Working Temperature
|
-20~50 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Our Value-added Service Package
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation.
2. Technical Services: Our company has been devoting ourselves into offering custom transforming projects for our worldwide clients in the field of medical, chemical engineering, plastics, rubber industries etc.
We can assist our clients to solve all kind of technical problems with our capable technician team, and we own adequate experience for production line transformation as well as formula feeding arrangement.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Service
1) OEM services provided
2) Excellent quality assurance
3) Fast delivery
4) Worldwide dealer or agent needed
FAQ
Q1: How can I find a loss in weight feeder machine model suitable for my product?
According to the material you are going to use.
Q2: May I know the delivery time?
Delivery will be within 20 days .
Q3: What type of payment do you have available?
We accept TT payment for offline orders.
Q4: How does your factory control the quality?
We are controlling the quality from beginning to the end.
