Wuxi Tonglike Technology Co., Ltd.
professional company engaged in weightless Feeder.
Food Grade Loss In Weight Screw Feeder Hopper 40-250L For Powder Materials
 |
Product Details:
| Place of Origin: | WuXi , China |
| Brand Name: | Wuxi Tonglike |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P, MoneyGram |
| Supply Ability: | 30 Sets Per Month |
Detailed Product Description
| Feeding Range: | Pellet, Free Flowing Powder, Fibrous Materials | Feature: | Simple Operation |
|---|---|---|---|
| Type: | Screw Conveyor | Structure: | Horizontal Conveyor |
| Material Feature: | Heat Resistant | Material: | 304 Stainless Steel (Food Grade) |
| High Light: | loss and weight feeders,continuous loss in weight feeder |
||

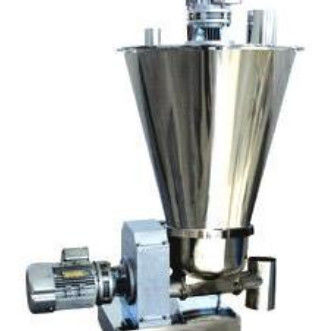

Food Grade Loss In Weight Screw Feeder Hopper 40-250L For Powder Materials
working principle
The twin-screw weight loss scale feeds the material through two vane type screws. The twin-screw is installed on the weighing platform. The screw operation is stable and reliable. The material is mostly 304 stainless steel (can be changed according to customer's material properties). The weighing platform is made of 304 stainless steel. Installed in the casing to prevent the material from entering the weighing platform and affect the accuracy of the weighing platform. The cleaning machine needs to remove the screw and then clean it with a brush to prevent the residual material on the screw from mixing.
| Model | Feeding range | Materials | Hopper | Precision |
| TLK-LW-T28 | 5-200L/h | Poorly flowing powder, pellets | 40L.80L | ±0.5% |
| TLK-LW-T38 | 15-500L/h | 80L.150L.200L. | ±0.5% | |
| TLK-LW-T46 | 200-1500L/h | 100L.150L.250L | ±0.5% |
Product Feature
- PLC control system
- Two sealing types:sack closer and heat sealer
- Three-sensor structure to keep more stable
- Can fill with nitrogen or carbon dioxide to have vacuum packing
- The sack closer has atuo oil-supply system
- Auto sewing
- Auto thread cutting with infrared sensor
- Auto lifting conveyor
- Easy installation
Our Value-added Service Package
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation.
2. Technical Services: Our company has been devoting ourselves into offering custom transforming projects for our worldwide clients in the field of medical, chemical engineering, plastics, rubber industries etc.
We can assist our clients to solve all kind of technical problems with our capable technician team, and we own adequate experience for production line transformation as well as formula feeding arrangement.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Service
1) OEM services provided
2) Excellent quality assurance
3) Fast delivery
4) Worldwide dealer or agent needed
FAQ
Q1: How can I find a loss in weight feeder machine model suitable for my product?
According to the material you are going to use.
Q2: May I know the delivery time?
Delivery will be within 20 days .
Q3: What type of payment do you have available?
We accept TT payment for offline orders.
Q4: How does your factory control the quality?
We are controlling the quality from beginning to the end.
