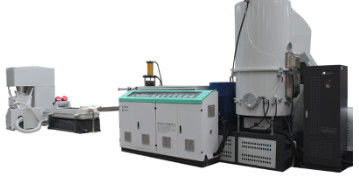

Automatic Plastic Granulator Machine Stainless Steel With Conical Screw Barrel

Automatic Plastic Granulator Machine Stainless Steel With Conical Screw Barrel

Automatic Plastic Granulator Machine Stainless Steel With Conical Screw Barrel

Product Details:

Place of Origin: WuXi , China
Brand Name: Wuxi Tonglike

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden case
Delivery Time: 30 Days
Payment Terms: Western Union, L/C, T/T, D/A, D/P, MoneyGram
Supply Ability: 30 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Plastic Granulator Machine Voltage: 380V/440V/415V/customized
Material: PP,PE,PET,PS,ABS,PA,PVC,PC,POM,EVA,PMMA Type: Recycling Granulator
Process Type: Extrusion And Pelletizing Application: Biodegradable Corn Starch Granules Production
High Light:

industrial plastic granulator

,

plastic bottle granulator

Automatic Plastic Granulator Machine Stainless Steel With Conical Screw Barrel



Product Description



The host and auxiliary of the plastic granulator machine are integrated. The installation of the machine is simple, the floor space is small, and the machine performance-price ratio is high. The energy consumption decreases by 30% – 40%. Waste plastic granulation machine equipment has a reasonable automatic design for processing. Mechanized cleaning, crushing, feeding, pelletizing can save much labor cost, just need one or two people to carry on.

Features of the plastic granulator:

1. The screw cylinder of the plastic granulator main machine is made of imported high-strength steel and has a long service life.

2. The machine adopts a conical screw barrel to speed up the feed.

3. The main and auxiliary machines form a complete set of production. The heating temperature is stable and the molecular structure of the material is effectively improved The air permeability is enhanced, and the quality of the plastic particles is improved.

4. The plastic granulating unit is mainly composed of a pulverizer, an extruder and, an automatic traction grain cutter.



Barrel Diameter(mm) Screw Diameter (mm) Screw L/D screw speed n(r/min) Main motor power(Kw) Screw torque T(N.m) Torque rating (T/A3) Typical production capacity (kg/h)
36 35.6 32-48 400/600 11/15/18.5/22 125-225 4.6-8.3 30-120
51 50.5 32-52 500/600 45/55/75/90 405-680 5.1-8.5 120-400
63 62.4 32-64 500/600 75/90/110/132 680-1200 4.8-8.5 180-750
72 71 32-64 500/600 110/132/160/250 995-1890 4.6-8.7 300-1200
94 93 32-64 500/600 250/315/450/550 2260-4510 4.7-8.7 700-2500
135 133 32-48 400/500 550/750/900/1200 6200-10800 4.4-7.7 1550-6500



Features of waste plastic recycle granulate machine



1) Made of bearing with high load factor,

2) Cutting tools made of high chromium tool steel, gap adjustable and durable,

3) Bearing seat stirs air convection to dissipate heat and get rid of dust,

4) Best cutting angle, which can effectively deal with waste,

5) Its Medium speed reduces dust and noise as well as the wear rate to the lowest point,

6) Smash box sound insulation design, which can effectively reduce the noise generated in the grinding,

7) Big top feed inlet port, easy for either automatic feeding or manual feeding,

8) Interlocked with high safety operation design and safety devices to meet European standards,

9) Motor designed with overload protection, which automatically shut down when it enters protection mode.

10) European shape, compact size, bottom with castors for easy moving,

11) Detachable design for easy maintenance,



Our Value-added Service Package

1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation.

2. Technical Services: Our company has been devoting ourselves into offering custom transforming projects for our worldwide clients in the field of medical, chemical engineering, plastics, rubber industries etc.

We can assist our clients to solve all kind of technical problems with our capable technician team, and we own adequate experience for production line transformation as well as formula feeding arrangement.

3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.



Service

1) OEM services provided

2) Excellent quality assurance

3) Fast delivery

4) Worldwide dealer or agent needed



FAQ

Q1: How can I find a loss in weight feeder machine model suitable for my product?

According to the material you are going to use.

Q2: May I know the delivery time?

Delivery will be within 20 days .

Q3: What type of payment do you have available?

We accept TT payment for offline orders.

Q4: How does your factory control the quality?

We are controlling the quality from beginning to the end.
