0.5-0.8Mpa Quantitative Packing Scale PLC System Dual English / Chinese Interface
 |
Product Details:
| Place of Origin: | WuXi , China |
| Brand Name: | Wuxi Tonglike |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 30 Days |
| Payment Terms: | Western Union, L/C, T/T, D/A, D/P, MoneyGram |
| Supply Ability: | 30 Sets Per Month |
Detailed Product Description
| Product Name: | Quantitative Packing Scale | Packing Material: | Fertilizer |
|---|---|---|---|
| Packing Speed: | 100-180 Package/h | Air Source: | 0.5-0.8Mpa |
| Weighing Range: | 10-50kg | Display Type: | Touch Screen |
| High Light: | powder bagging machine,wood pellet bagging machine |
||
0.5-0.8Mpa Quantitative Packing Scale PLC System Dual English / Chinese Interface
Detailed parts of the packing machine
Our packaging machine use the PLC system of 10" full color touch screen panel, dual English / Chinese interface.
The machine installation 3pcs of high precision load cell provide high weighing accuracy, also the bag clamping
device installation 2pcs of cylinder and 2pcs of sensor switch, bag clamped more tighter, bag giving more safe.
The bagging machine working with the automatic bag sewing machine with automatic start/off and single needle
double thread automatic cutter, the sewing data can be display and record.

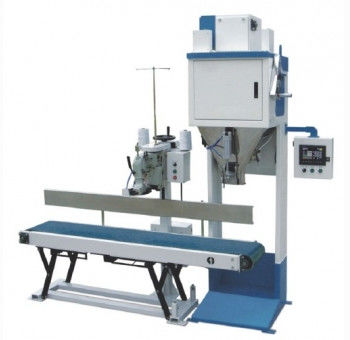

Packing Machine Structure & Working Process
The materials will through the feeding parts(connect hopper) into the gravity feeder then into the weighing hopper,
the weighing hopper installation 3pcs load cell to weighing, manual giving the bag to the packing machine bag clamp
device and touch the sensor, the bag will automatic clamped, the finished weighing materials discharge into the bag,
bag release and on conveyor to the sewing machine for bag closed by thread stitching.
The Feature of scale:
1. Adopting double high precesion sensor and intelligent meters;
2. Error automatically ammended, trouble self-inspected, packaging speed display;
3. Adopting famouse brand process switch and air equipment, Performance Stable,
and easy to maintainence;
4. Stainless Steel material-containers and flow outlet parts;
5. Optional machines: sealing machine, coding machine, sewing machine, belt machine.
|
Application materials
|
iron powder ,cement , limestone , feed additive or other powder material.
|
||
|
Display Resolution
|
5g, 10g
|
||
|
Weighing Range
|
10-50kg/bag or customized needs
|
||
|
Precisions
|
+/-(0.1-0.2)% FS
|
||
|
Packing Capacity
|
360-480 bags/hour
|
||
|
Dimention(L*W*Hmm)
|
3000*1200*2100mm, the size can be customized according to your site
|
||
|
Power Supply
|
AC220V/380V, 50HZ, 1P/3P, customized available
|
||
|
Air Source
|
0.5-0.7 Mpa
|
||
|
Power
|
(1.5+2.2)KW
|
||
|
Working Temperature
|
-20~50 ℃
|
||
|
Relative Humidity
|
≤90% RH(Non-condesing)
|
||
Our Value-added Service Package
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation.
2. Technical Services: Our company has been devoting ourselves into offering custom transforming projects for our worldwide clients in the field of medical, chemical engineering, plastics, rubber industries etc.
We can assist our clients to solve all kind of technical problems with our capable technician team, and we own adequate experience for production line transformation as well as formula feeding arrangement.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
Service
1) OEM services provided
2) Excellent quality assurance
3) Fast delivery
4) Worldwide dealer or agent needed
FAQ
Q1: How can I find a loss in weight feeder machine model suitable for my product?
According to the material you are going to use.
Q2: May I know the delivery time?
Delivery will be within 20 days .
Q3: What type of payment do you have available?
We accept TT payment for offline orders.
Q4: How does your factory control the quality?
We are controlling the quality from beginning to the end.
